R129 Sun Visor Assembly Repair Kit: Engineering a Permanent Fix for a Classic Failure Point

If you own a Mercedes-Benz R129 SL, you already know the sun visor assembly is one of those components that seems destined to fail. At Rigid Custom Works, we got tired of seeing pristine roadsters with drooping, rattling, or completely collapsed visor assemblies. So we engineered a solution that goes beyond a simple replacement — we built a kit designed to outlast the original by a significant margin.

The Problem: Why the OEM Part Fails

The original Mercedes-Benz R129 sun visor assembly was designed in the late 1980s and built to cost targets that, decades later, reveal their limitations. There are three primary failure mechanisms we consistently see in the field:

• Pivot Friction Clip Fatigue: The OEM tensioning clip is a thin-gauge spring steel stamping that loses its clamping force over time due to repeated thermal cycling. Southern-climate vehicles accelerate this failure dramatically, as interior temperatures regularly exceed 150°F (65°C). Once the clip fatigues, the visor loses its ability to hold position and simply drops under its own weight.
• Brittle ABS Shell Cracking: The outer visor shell is injection-molded from an ABS compound that becomes increasingly brittle with UV exposure and age. The hinge attachment points — the thinnest section of the molding — are almost always the first to crack, causing the entire assembly to separate from the headliner mount.

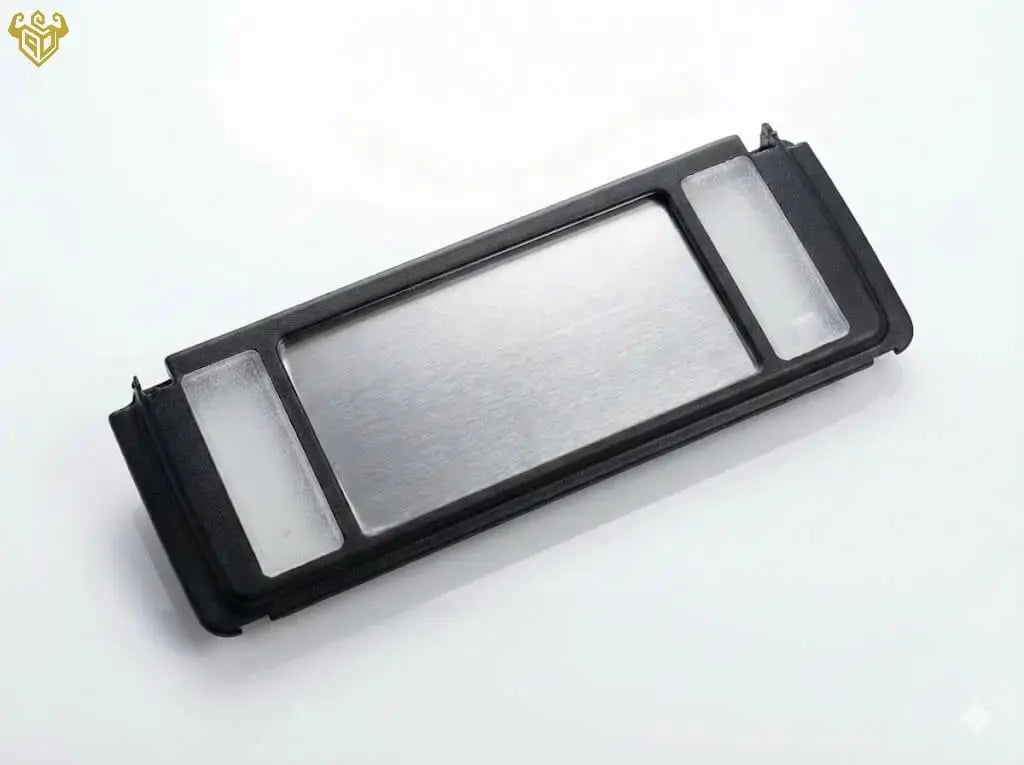

• Vanity Mirror Retention Failure: The OEM mirror retention clips are a simple snap-fit design molded directly into the visor housing. As the ABS hardens and loses flexibility, these clips stop functioning and the mirror cover begins to rattle or falls free entirely.

The core problem is that Mercedes engineered this assembly with an acceptable service life for the original ownership period. For a vehicle now well into its third or fourth decade on the road, those original tolerances simply no longer apply.



The RCW Solution: Our Engineering Upgrades

The RCW R129 Sun Visor Assembly Repair Kit was developed after disassembling and analyzing over thirty failed OEM units. Every upgrade in this kit addresses a documented, specific failure mode — nothing is changed for cosmetic reasons alone.

• Upgraded Pivot Tension Mechanism: We replaced the OEM stamped spring clip with a precision-machined 17-4 PH stainless steel pivot bushing and tension collar assembly. This design applies consistent, adjustable clamping force across the full pivot arc and is completely immune to the thermal fatigue that kills the OEM clip. Tension is field-adjustable with a standard T10 Torx driver, so you can dial in exactly the holding force you want.
• Glass-Filled Nylon Replacement Housing: The replacement visor shell in our kit is molded from 30% glass-filled Nylon 66 (PA66-GF30). This material maintains its mechanical properties at elevated temperatures, resists UV degradation, and carries roughly three times the impact resistance of the original ABS compound at end-of-life. Hinge attachment bosses are thickened by 2.1mm over OEM spec and feature a ribbed gusset geometry for additional load distribution.
• Stainless Steel Mirror Retention Springs: We replaced the integral snap-fit clips with discrete 302 stainless steel leaf spring retainers. These are mechanically fastened, not molded-in, meaning they can be individually replaced if ever needed without disturbing the rest of the assembly.
• Headliner Mount Reinforcement Plate: We include a laser-cut 1.5mm 304 stainless backing plate that distributes the visor load across a larger area of the headliner substrate. This is particularly valuable on vehicles where the original mounting area has already experienced some degradation.

Tech Specs

• Compatibility: Mercedes-Benz R129 SL-Class, all variants, model years 1990–2002 (Driver and Passenger side kits sold separately)
• Pivot Bushing Material: 17-4 PH Stainless Steel, H900 condition, CNC-machined to ±0.05mm tolerance
• Tension Collar Adjustment Range: 0.5 N·m to 2.2 N·m holding torque, adjustable in the field
• Visor Shell Material: PA66-GF30 (30% Glass-Filled Nylon 66), UV-stabilized, matte black finish
• Shell Continuous Use Temperature Rating: -40°F to 230°F (-40°C to 110°C)
• Mirror Retention Springs: 302 Stainless Steel, 0.4mm thickness, passivated finish
• Headliner Backing Plate: 304 Stainless Steel, 1.5mm thickness, laser-cut, edges deburred and radiused
• Hardware Included: Full fastener set, M4 stainless hex socket cap screws, nylon-insert lock nuts
• Finish: Color-matched matte black; custom color matching available on request for illuminated vanity mirror variants
• Country of Manufacture: USA

Installation Tip: Set Your Pivot Tension Before Final Assembly

The single most important piece of installation advice we can give you is this: set and verify your pivot tension before you button up the headliner. Thread the tension collar to the middle of its adjustment range as your starting point, then mount the visor and test its hold position through a full range of motion. A properly tensioned visor should hold firmly at any angle but should not require excessive force to reposition — you are looking for smooth, positive resistance, not stiffness.

If you tighten the headliner and then decide the tension is off, you will be pulling the headliner back down to make the adjustment. The T10 Torx access point on our pivot assembly is accessible from the visor face when open, so an experienced installer can make minor adjustments without full disassembly — but getting it right at the bench saves you time on the car.

Also take the time to clean and inspect your headliner mounting substrate before installing the backing plate. Any existing delamination or foam degradation should be addressed at this stage. A visor assembly is only as solid as the surface it mounts to, and the backing plate cannot compensate for a structurally compromised headliner.

Questions about fitment, custom color matching, or fleet pricing for restoration shops? Contact the Rigid Custom Works technical team directly — we are happy to talk through your specific application.

```
