If you own a BMW Z3 Coupé — the shooting-brake enthusiasts still call the 'clownshoe' — you have probably already met one of its quiet failure points. The load-area roller blind that keeps the boot tidy hangs off a small moulded bracket, and with age that bracket cracks, then snaps, and the blind is left loose with nowhere to mount. Finding a new one from the factory is a dead end. This is the part we re-engineered, and the BMW Z3 Coupé cargo roller bracket replacement is a direct-fit answer to a problem the platform has quietly carried for years.
The Pain: a roller blind with nowhere left to mount
The symptom is always the same. The cargo cover that used to click cleanly into place now sags, rattles over rough roads, or drops out entirely. Look closely at the mounting point and you will usually find the cause: the small plastic bracket that anchors the roller has fractured at a stress point, or has crumbled at the edge where it grips the trim. On a car of this age it is not abuse — it is time. The bracket did its job for two decades, then reached the end of a lifespan it was never designed to exceed.
The Diagnosis: why the factory bracket 51478400115 fails
The original bracket — factory part 51478400115 — was moulded from ABS. ABS is inexpensive and easy to injection-mould, which is exactly why it was chosen, but it carries two weaknesses that matter here. It is not UV-stable, so years of light through the coupé's large glass area leave it chalky and brittle. And it has limited heat tolerance, so the temperature swings inside a parked cabin slowly rob it of the flexibility it needs to absorb load. A brittle bracket under repeated clip-in force does not flex — it snaps. Worse, BMW no longer supplies the part. Used examples are, by definition, the same aged and fragile ABS, so buying a 'good used one' only resets the clock on the same failure. For anyone searching for a BMW Z3 Coupé cargo roller bracket replacement, the factory pipeline is simply empty.

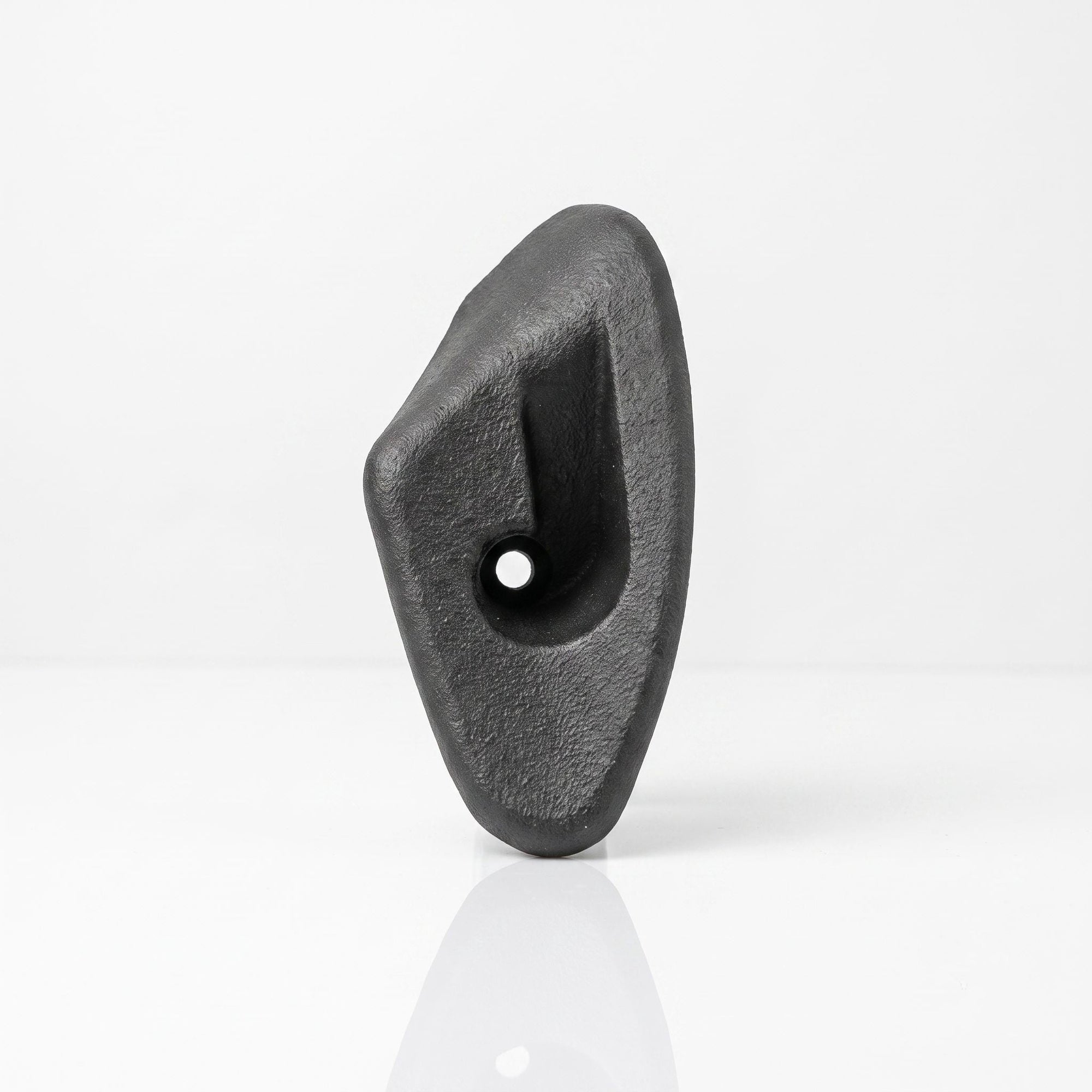

The Solution: a UV-stable ASA bracket built to outlast the original
We re-manufacture this bracket in ASA (acrylonitrile styrene acrylate), an engineering polymer chosen specifically for the two failure modes above. ASA is UV-stable and colour-through, so it will not yellow or grow brittle under sustained light. It holds its properties through continuous heat well beyond the range that embrittles ABS — which matters directly in a parked car. Every mounting hole, tab, and roller interface is reverse-engineered from the original geometry, so the blind clips in and operates exactly as it did when the car was new: no modification, no drilling, factory hardware. It is a direct-fit replacement, and it is backed by Rigid Custom Works' 12-month warranty.
Climate matters here more than the small size of the part suggests, because this bracket lives in the hottest, most light-exposed corner of the cabin. In the GCC, sustained summer heat and intense UV push interior surfaces far past what the original ABS was rated for, softening and embrittling trim on a compressed timeline. In Europe the failure mode is different but no gentler: freeze-to-heat thermal cycling and long garage-kept dormancy leave aged plastics cold-brittle, so the bracket cracks on the first firm clip-in of the season. In North America, Sun-Belt owners see Gulf-grade UV while northern cars face cold-snap embrittlement. ASA was selected because it resists all three mechanisms — UV degradation, heat deflection, and dimensional drift — not just one.
The Proof: factory bracket versus the RCW replacement
| Feature | Factory bracket (51478400115) | RCW replacement |
|---|---|---|
| Material | ABS | ASA (UV-stable, colour-through) |
| UV resistance | Poor — yellows and embrittles | High — stable under sustained light |
| Heat tolerance | Limited — softens in a hot cabin | Rated well beyond cabin peaks |
| Dimensional stability | Degrades with age | Held to the original geometry |
| Warranty | None (discontinued) | 12-month RCW warranty |
| Availability | Discontinued by BMW | Made to order |
The before-and-after is simple. Before, the roller blind is loose, the boot rattles, and the mounting point is a cracked stub. After, the blind clicks home and stays there — and because the replacement is engineered against the exact failure mode that killed the original, it is not a repair you should expect to make twice.
Does this really fit the Z3 Coupé without modification?
Yes. The bracket is modelled from the original 51478400115 geometry and mounts to the factory location with the original hardware. There is no cutting or drilling — the roller blind interfaces exactly as it did from new.
Why not just buy a used factory bracket?
A used bracket is the same aged ABS that failed on your car, carrying the same UV and heat history. You would be paying to reset the clock on an identical failure. The ASA replacement removes the root cause rather than postponing it.
Will ASA really hold up in extreme heat?
That is precisely why we use it. ASA keeps its strength and shape through continuous heat well past the point where ABS softens — the specific weakness that destroys the original bracket in hot climates.
If your Z3 Coupé blind has given up, the fix is a single, correctly-engineered part. You can check fitment and specifications on the BMW Z3 Coupé cargo roller bracket replacement page, browse the rest of our BMW parts and accessories, or read how we approached a similar interior failure in our teardown of the BMW E46 front seat frame trim cover.
