Engineering Out the Weak Links: Re-Engineering the BMW E46 Front Seat Frame Trim Cover

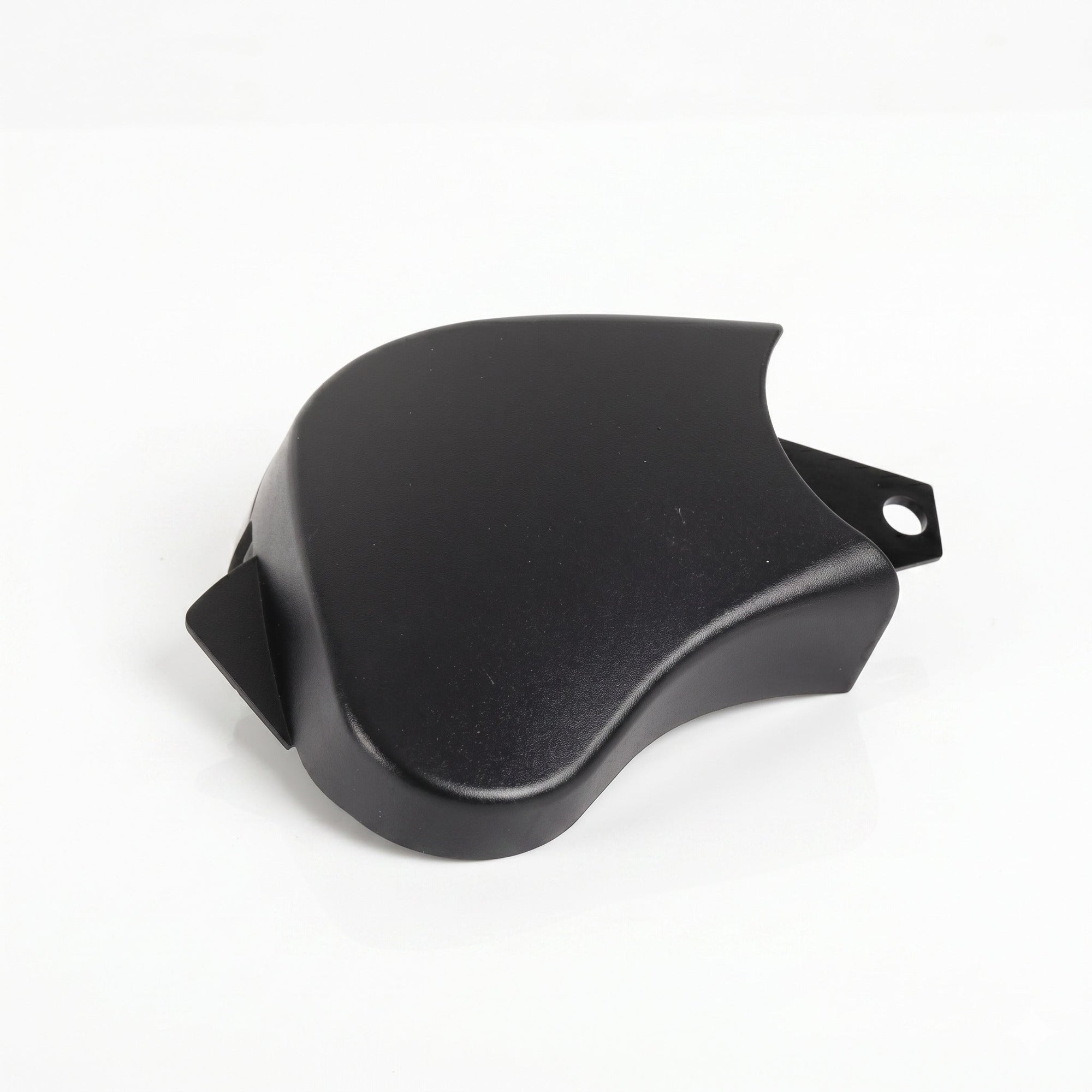

The BMW E46 chassis remains an icon of automotive engineering, celebrated for its balanced driving dynamics, timeless design, and legendary track capabilities. However, even the most legendary chassis suffer from localized design oversights. Anyone who has owned or restored an E46 3 Series or E46 M3 knows the exact point of frustration: the brittle, cracking plastic of the front seat frame trim covers.

When searching for a replacement BMW E46 front seat frame trim cover (OEM Part Numbers: 52108255367 or 8255367), enthusiasts often default to purchasing a new old stock (NOS) or direct OEM replacement. Yet, within months, the exact same failure reoccurs. At rigidcustomworks.com, we approach this problem not as a part replacement task, but as a failure-analysis and engineering challenge. Simply put: we fix what the factory got wrong.

The Anatomy of an OEM Failure Point

Original Equipment Manufacturer (OEM) interior components are inherently compromised. During the development of the E46 platform in the late 1990s, automotive manufacturing relied heavily on mass-production injection molding. These parts were designed under strict parameters of cost-analysis, rapid assembly line cycle times, and planned obsolescence.

[OEM Factory Design]
  ├── Thin-walled injection molding (Saves cost/weight)
  ├── Weak, rigid mounting tabs (High stress concentration)
  └── Low-grade ABS/Polycarbonate blend (Susceptible to UV & thermal cycles)
        └── FAILURE: Cracking at stress points under modern operational loads

To optimize material flow during injection molding, factory designers frequently hollow out underlying support structures, leaving razor-thin cross sections at critical load paths. On the outer left side panel of the E46 front seat, every single entry and exit from the vehicle applies a downward mechanical force directly on the trim cover. Under these repetitive load cycles, the stress concentrates directly on the weak, rigid injection-molded tabs holding the panel to the steel seat frame.

Why Factory Injection Molding Fails in Extreme Environments

While mechanical stress is a significant factor, the true catalyst for degradation is the environmental context. This issue is severely magnified in challenging geographical zones, such as the blistering heat and intense UV radiation of the GCC (Gulf Cooperation Council) climate.

The cabin temperature of a vehicle parked in direct sunlight can easily exceed 80°C (176°F). This persistent thermal load, paired with unshielded UV radiation, aggressively accelerates the degradation of low-grade factory polymers. The ultraviolet photons break the molecular bonds of the original polymer chains—a chemical process known as photo-oxidation. The plastic loses its remaining elasticity, turns brittle, and disintegrates at the slightest impact.

The Core Material Axiom

The right material is wrong if used in the wrong environment. Factory components are built to satisfy global cost baselines, not to survive localized environmental extremes.

Re-Engineering the Geometry: We Fix What the Factory Got Wrong

We do not believe in restoring a vehicle to an inherently flawed factory standard; our mission is to elevate it beyond it. Overcoming the structural deficiencies of the original part requires a complete ground-up reverse engineering process.

Using ultra-precise 3D laser scanners, our industrial designers extract the exact external bounds and clip locations of the original panel to ensure a flawless aesthetic fit. From there, we entirely redesign the internal geometry within a digital Computer-Aided Design (CAD) environment.

[Rigid Custom Works Engineering Cycle]
  3D Laser Scan ➔ Stress Field Analysis ➔ Internal Geometric Redesign ➔ Advanced Additive Manufacturing

Advanced Additive Manufacturing and Material Optimization

Rather than using mass-production injection methods that enforce uniform wall thicknesses and structural hollows, we deploy advanced additive manufacturing. This structural approach allows us to vary density and reinforce specific points of high stress.

• Eliminating Stress Concentrations: We increase the thickness of the mounting clips and introduce generous fillets (curved inner corners) to distribute mechanical loads evenly across the structure, preventing the micro-fractures that destroy OEM panels.

• True Environmental Resilience: Instead of utilizing standard, cheap plastics that yield to high cabin temperatures, we opt for premium engineering-grade polymers such as Acrylonitrile Styrene Acrylate (ASA). ASA exhibits exceptional UV stability, high impact resistance, and an elevated glass transition temperature ($T_g$), ensuring it maintains its structural shape even under the punishing GCC sun.

Structural Optimization Beyond Factory Standards

The core benefit of utilizing advanced additive manufacturing to produce our updated components is the ability to program complex internal structures that injection molding simply cannot achieve.

Instead of a hollow, brittle shell, the internal volume of our side panels utilizes structural infills like the gyroid or honeycomb layout.

[Internal Geometry Profiles]

   Factory OEM Plastic:          Rigid Custom Works Panel:
   ┌───────────────────┐         ┌───────────────────┐
   │ ░░░ HOLLOW ░░░░   │         │ ▵▿▵ GYROID ▵▿▵▵  │
   │ ░░░ SHELL ░░░░░   │         │ ▵▿ SOLID INFILL ▵ │
   └─────────▲─────────┘         └───────────────────┘
       Weak Stress Point             Distributed Load

A gyroid infill creates a continuously curving, isotropic matrix (meaning it exhibits equal structural strength in all directions). When an occupant steps into the vehicle and compresses the side bolster of the seat, the kinetic energy is transferred smoothly through the entire internal mesh of the panel rather than shearing off a solitary mounting tab.

Through meticulous material science and optimized mechanical geometry, we provide independent garages, motorsport builders, and meticulous enthusiasts with a part that looks entirely factory-correct on the outside, but operates on an entirely higher structural standard underneath. Explore the full breakdown of our structural enhancements on rigidcustomworks.com.
