Why the W124 Belt Presenter Cover Fails — And What the Factory Used Instead

If you own a Mercedes-Benz W124 or C124 and the seat belt presenter arm has started sticking, dragging, or simply looks like it has been left in a furnace, the cover is almost certainly the first component to go. This is not a wear issue. It is a materials failure — and it was predictable from the moment the part left Stuttgart.

The Problem: What the OEM Part Is Made Of and Why It Fails

The original Mercedes W124 and C124 seat belt presenter cover — OEM references A1246921122 (Left) and A1246921222 (Right) — is manufactured from painted ABS (Acrylonitrile Butadiene Styrene). ABS is a cost-effective thermoplastic with a continuous heat resistance ceiling of approximately 70°C to 80°C under sustained load. In a closed vehicle cabin parked in Dubai, Riyadh, or Perth in summer, dashboard-adjacent interior temperatures routinely reach 90°C to 110°C. That gap between material tolerance and real-world operating condition is where the failure originates.

The degradation follows a predictable sequence. First, the UV radiation passing through the side glass attacks the painted surface layer. ABS does not have inherent UV stabilisation — the paint is carrying that entire function. Once the topcoat begins to chalk and micro-crack, which typically occurs within three to five years of regular sun exposure in high-UV climates, moisture penetrates to the substrate. The ABS beneath becomes brittle. Surface impact resistance drops sharply. The presenter arm cover begins to exhibit hairline cracking at the snap-fit points — exactly where mechanical stress concentrates every time the door opens and the belt extends toward the occupant.

Simultaneously, repeated thermal cycling — the part expanding as the cabin heats and contracting as the air conditioning drops temperatures — causes dimensional drift at the snap tabs. The cover begins to rattle. Then it refuses to seat flush. Eventually it cracks through at the retention clips entirely, leaving the mechanical arm of the presenter exposed and the interior looking like a parts-bin casualty rather than a classic Mercedes coupe or cabriolet.

The painted surface compounds the failure. Unlike a colour-through material, painted ABS develops a secondary failure mode: paint delamination. Scratches from seat belt webbing contact — which occurs on this specific part every single time the belt is presented — cut through to the grey or beige substrate beneath. No amount of detailing recovers the appearance. The part is simply consuming itself.

Mercedes discontinued this part. Genuine NOS (new old stock) examples exist but are ageing in the same way — the ABS is still ABS regardless of whether it was fitted in 1995 or stored in a warehouse. Aftermarket reproductions in equivalent painted ABS replicate the original failure mode on a shorter timeline because they lack the quality control of the original moulding.

The RCW Solution: Material Engineering, Not Cosmetic Replacement

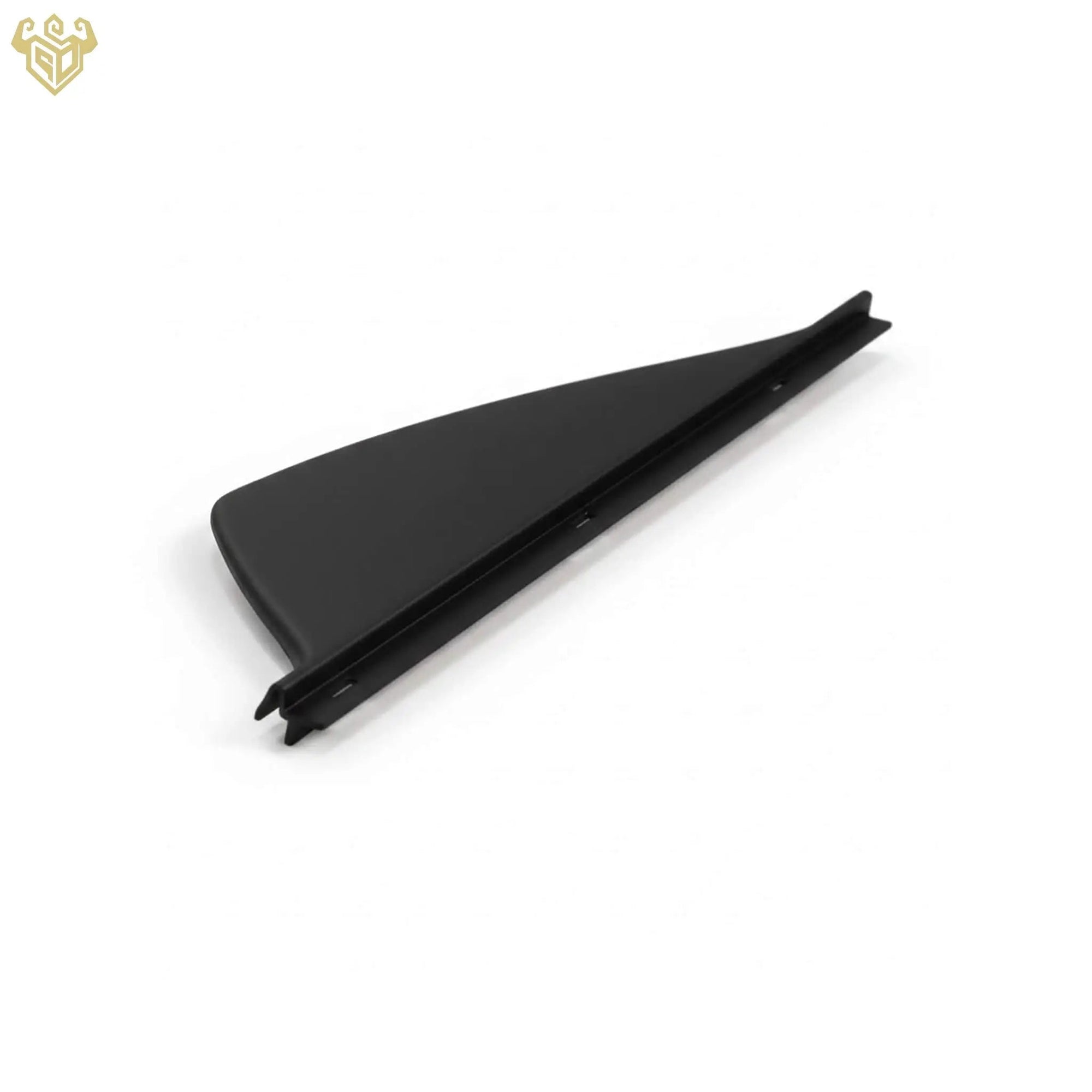

Rigid Custom Works reverse-engineered the W124 and C124 belt presenter cover from dimensional data taken from original OEM units and redesigned it around ASA — Acrylonitrile Styrene Acrylate. The switch is not aesthetic. It is a thermal and photochemical engineering decision driven by documented OEM failure data from hot-climate markets.

ASA carries a continuous service temperature of 100°C or above, with short-term excursion tolerance beyond that threshold. At the temperatures routinely recorded inside a closed vehicle in the UAE, Saudi Arabia, or Australia — 90°C to 110°C in cabin air, higher at surfaces with direct solar load — ASA remains dimensionally stable. The snap tabs retain their geometry. The cover does not warp, sag, or deform against the presenter arm mechanism. The ABS original is already at or beyond its thermal ceiling in these conditions. ASA is not.

UV performance is intrinsic to the polymer, not applied as a coating. ASA contains acrylate rubber phases within its molecular structure that absorb UV radiation without chain scission — the photochemical process that causes ABS to yellow, chalk, and embrittle. This means the RCW cover does not depend on a paint layer or topcoat to manage UV exposure. There is no paint on this part. There is no coating to delaminate, chip, or fade. The colour — a deep matte black — is present throughout the entire cross-section of the material. Cut the part anywhere and it is black through to the core. Belt webbing contact abrasion, which is unavoidable on this specific component, does not reveal any substrate colour because the substrate and the surface are the same material.

Fitment is direct. The RCW cover replicates the OEM snap-fit geometry at the retention clips and mounting points. No adhesive, no modification, no specialist tooling. It replaces A1246921122 and A1246921222 on a click-in basis. The presenter arm mechanism is untouched.

All RCW parts are designed, printed, and QC inspected in-house in Dubai. The W124 and C124 presenter cover is backed by a 5-year warranty against manufacturing defects — a warranty that is meaningful specifically because ASA's material properties support it. This is not a warranty on a part that will begin UV-degrading within eighteen months. The thermal and photochemical stability of ASA is what makes the 5-year commitment structurally honest.

OEM vs RCW: Direct Comparison

The W124 and C124 belt presenter cover is a small part with a disproportionate presence in the cabin. It operates on every door cycle, sits in direct line of window UV ingress, and is subjected to belt webbing contact throughout the vehicle's service life. The OEM material specification was adequate for European climates and a fifteen-year product lifecycle. It is not adequate for the operating environment in the Gulf, the Australian interior, or any market where ambient solar load is a daily constant. The failure is structural, not cosmetic, and replacing a failed ABS unit with another ABS unit — whether NOS or aftermarket reproduction — restarts the same failure sequence.
