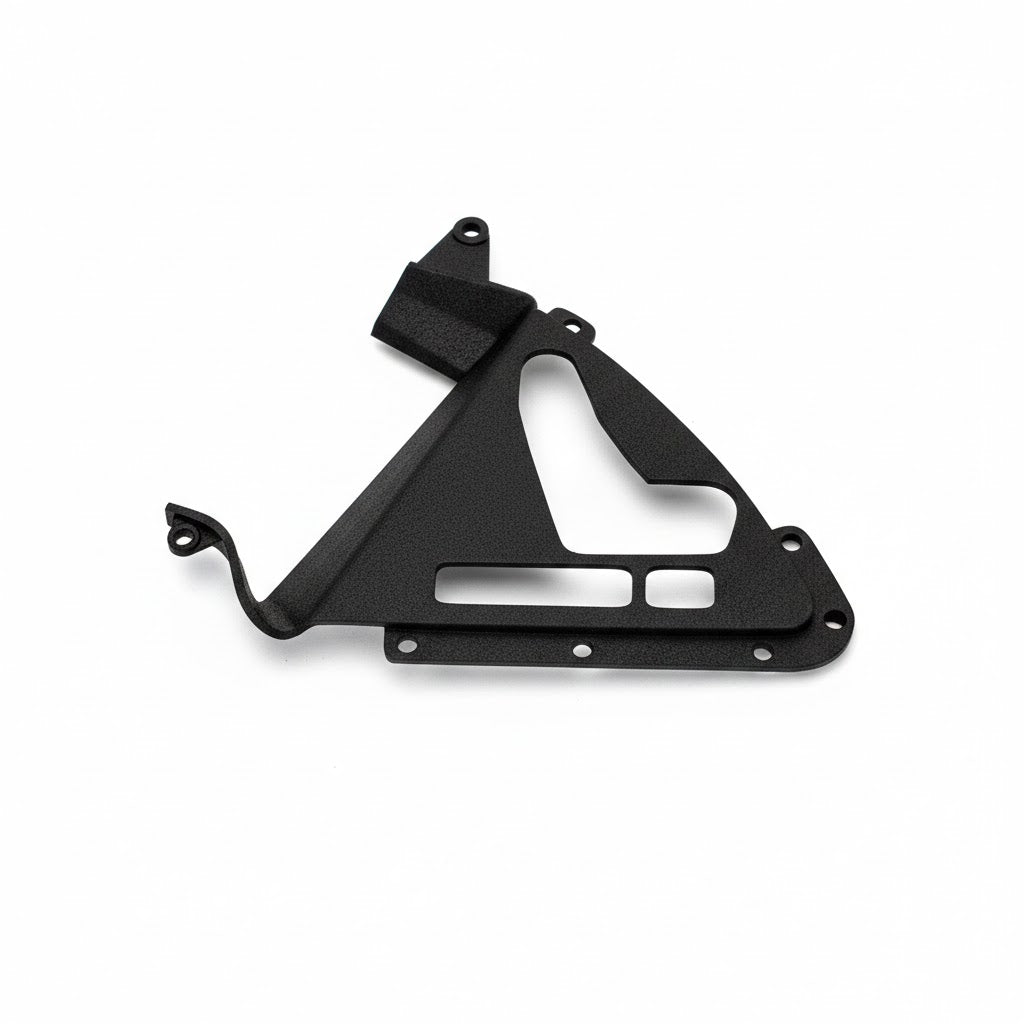

The Permanent Fix for Your Mercedes R129 Memory Seat Switch Cover (Part 1297273988)
If you own a Mercedes-Benz R129 SL with powered memory seats, there's a very good chance the plastic cover over the seat switch module is cracked, broken, or missing entirely. It's one of the most commonly failed interior trim pieces on the R129 — and until recently, there was no good solution. The OEM part (1297273988 for the right side, 1297209370 for the left) has been discontinued for years, salvage yard parts are just as old and brittle as what broke, and no aftermarket supplier had bothered to reproduce it. This article explains why it fails, how to identify the correct part for your car, and what the permanent fix looks like.
Why the R129 Seat Switch Cover Fails
The seat switch cover on the R129 is a small housing that sits over the power seat control module on the seat side panel. It's made from standard ABS polymer — the same material used throughout the R129 interior — and it was never designed with 30+ years of service life in mind. ABS without UV stabilization becomes brittle as it ages, and the combination of UV radiation coming through the windows, repeated thermal cycling from hot-climate parking, and the mechanical stress of fingers pressing the seat controls eventually causes the housing to crack.
The failure typically starts as a hairline crack at one of the retention tab locations. Over time, the crack propagates until a tab breaks off entirely and the cover sits loose over the switch module. Many R129 owners find that the cover is completely absent when they acquire the car — a previous owner removed it after it broke and never replaced it.
Identifying the Correct Part Number
The R129 seat switch cover is a handed part — the left side (driver's side in left-hand-drive markets) and right side are mirror images of each other and are not interchangeable. The OEM part numbers are:
- Right side: 1297273988
- Left side: 1297209370
Both parts are now discontinued from the Mercedes-Benz dealer network. Used examples can occasionally be found through R129 specialist suppliers or enthusiast forums, but used parts from the same era carry the same brittleness risk as the original — they may look intact but crack during installation or shortly after.
The ASA Reproduction Solution
Rigid Custom Works produces a reproduction of the R129 seat switch cover in ASA (Acrylonitrile Styrene Acrylate) — a material that is objectively superior to the original ABS for this application. ASA has significantly better UV resistance and does not become brittle under normal interior UV and thermal exposure conditions. The part is reverse-engineered from OEM reference examples to ±0.1mm tolerances, ensuring that the retention tabs engage correctly, the button apertures align with the switch module controls, and the finished installation looks factory-correct.
Unlike the original factory part, an ASA reproduction will not yellow or embrittle under the same conditions that destroyed the original. This is the permanent fix — not a repair, not a compromise, but a functionally and dimensionally equivalent part in a better material.
Installation
Installation takes approximately 10 minutes and requires no tools. Gently remove any remaining fragments of the failed factory cover from the seat switch module. Align the Rigid Custom Works replacement cover over the module, ensuring all button apertures are correctly positioned. Press the cover firmly onto the module until all retention tabs engage. Verify that each seat control button operates freely through its respective aperture and that the cover sits flush and secure. No adhesive, screws, or permanent modification required.
If you're replacing both sides, order both left and right — the covers are not interchangeable. Browse our Mercedes R129 collection for the full range of interior restoration components we produce for this platform.
The Permanent Fix for Your Mercedes R129 Memory Seat Switch Cover (Part 1297273988)
There is a unique feeling that comes with sliding into the driver’s seat of a Mercedes-Benz R129 SL-Class. The heavy, vault-like thud of the door closing, the sweep of the analog gauges, and the smooth idle of an over-engineered German powerplant all combine to create an automotive experience that is rarely replicated today. The R129 was designed during what many consider to be the "Golden Era" of Mercedes-Benz engineering—a time when the mandate from Stuttgart was simply, "Build the best car in the world, regardless of cost."
But as any classic Mercedes owner knows, time is the ultimate test of engineering. While the M119 V8 engine and the robust chassis can easily outlast us all with proper maintenance, the interior trim tells a very different story.
If you own an R129, you are likely intimately familiar with the heartbreak of brittle interior plastics. Today, we are taking a deep engineering dive into one of the most frustrating, common, and visually obvious failures in the SL cabin: the Memory Seat Switch Cover (OEM Part Number: 1297273988).
At Rigid Custom Works, we don’t just replace broken parts with old stock; we re-engineer them to ensure they never fail again. Here is the story of why this specific part breaks, the science behind the failure, and how we developed a permanent, modernized solution.
The Legacy of the Mercedes-Benz R129 SL-Class
To understand why a broken plastic cover is so frustrating, we have to look at the pedigree of the car itself. Unveiled at the 1989 Geneva Motor Show, the R129—penned by legendary designer Bruno Sacco—was a technological tour de force. It featured a fully automatic folding soft top, a revolutionary pop-up roll bar that deployed in 0.3 seconds during a rollover, and seats that were marvels of engineering, integrating the seatbelts directly into the magnesium seat frames.
Because the seats were so incredibly complex and adjustable, Mercedes mounted the intricate, miniature "seat-shaped" adjustment switches directly onto the door panels. This was an ergonomic triumph. You didn’t have to blindly reach down the side of the seat cushion; the controls were right there at your fingertips, flanked by the memory preset buttons.
Surrounding this vital switch block is the Memory Seat Switch Cover bezel (Part 129 727 39 88). Its job is to seamlessly integrate the switch matrix into the luxurious leather and wood of the R129’s door card, hiding the unsightly wiring harness and mounting screws beneath it.
When the car was new, this bezel was a perfect, flush-fitting piece of premium trim. But three decades later, it has become a nightmare for restorers and enthusiasts alike.
The Achilles Heel of 90s Mercedes Interiors: Polymer Degradation
Why do the plastics in 1990s Mercedes-Benz vehicles fail so spectacularly? It wasn't poor engineering; it was a shift in environmental philosophy. During the development of the R129 (and its siblings, the W140 S-Class and W124 E-Class), European manufacturers began experimenting with recyclable, environmentally friendly plastics and biodegradable wiring harnesses.
While the intentions were noble, the long-term material science was flawed. The original Memory Seat Switch Cover was injection-molded from early formulations of ABS (Acrylonitrile Butadiene Styrene) plastic. While ABS is generally tough, the specific chemical mix used in these bezels contained plasticizers that off-gas and evaporate over time.
The Impact of UV and Thermal Cycling
This chemical degradation is drastically accelerated by thermal cycling and UV radiation. In hot climates—like here in the UAE, the southern United States, or Australia—the interior of a closed car parked in the sun can easily exceed 150°F (65°C).
Over years of heating up during the day and cooling down at night, the ABS plastic loses its elasticity. It undergoes a process called polymer chain scission, where the long molecular chains that give the plastic its strength begin to break down. The material transforms from a tough, flexible polymer into something that resembles dry, brittle glass.
The Specific Failure of Part 1297273988
The memory seat switch cover is located in a high-traffic, high-touch area. Every time you close the heavy R129 door, shockwaves travel through the door card. Every time you reach to adjust your seat, you put pressure on this bezel.
The cover is held in place by a series of thin, delicate retention tabs molded directly into the back of the bezel. Because of the polymer degradation mentioned above, these tabs lose their ability to flex. One day, you go to adjust your seat, or you simply shut the door, and SNAP. The tiny tabs shear off completely.
The result? The switch cover pops off, exposing the metal screws and wiring underneath, or it hangs sadly by a single remaining clip, rattling against the door panel every time you hit a bump. For a car that commands such respect and visual presence, a dangling door switch is a massive detractor from the luxury experience.
The Trap of the "Used Parts" Market
When an R129 owner experiences this failure, their first instinct is usually to hunt for an OEM replacement. However, this leads down a frustrating and expensive rabbit hole:
- New Old Stock (NOS): If you can even find a brand-new, original part sitting on a dealership shelf, it will cost a small fortune. More importantly, it is still made of the same 30-year-old plastic formulation. Even if it hasn't been in the sun, the plasticizers have still been degrading in the box. It is a ticking time bomb.
- Used Parts on eBay: Buying a used switch cover from a dismantled R129 is a gamble you will almost certainly lose. You are paying premium prices for a part that has already been subjected to decades of heat cycling. The tabs are already micro-fractured; they will likely snap the moment you try to press the cover into your door panel.
We knew there had to be a better way. We didn't just want to replicate the part; we wanted to permanently cure the disease.
The Rigid Custom Works Engineering Process
At Rigid Custom Works, our philosophy is simple: Identify the OEM failure point, apply modern material science, and over-engineer a permanent solution. When we tackled the R129 Memory Seat Switch Cover, we started by collecting dozens of failed OEM units. We put them under magnification to study exactly where and why the sheer fractures were occurring on the retention clips.
1. High-Fidelity 3D Scanning and Reverse Engineering
Using metrology-grade 3D scanning equipment, we captured the exact external geometry of the factory cover. It is absolutely critical that the surface curvature, the switch cutouts, and the overall footprint perfectly match the original Mercedes design so that the aesthetic of the door card remains flawless.
2. CAD Optimization
Once we had the digital twin, we didn't just hit "print." We brought the model into our CAD software to redesign the hidden architecture of the part. We identified the high-stress junctions at the base of the retention clips and added structural fillets (rounded reinforcements). By adding just a fraction of a millimeter of material to the base of these clips, we exponentially increased their shear strength without affecting how the part snaps into the door.
3. Advanced Material Selection: ASA Polymer
The geometry is only half the battle; the material is the true secret to a permanent fix. We abandoned ABS entirely. Instead, the Rigid Custom Works Memory Seat Switch Cover is manufactured using ASA (Acrylonitrile Styrene Acrylate).
ASA is an engineering-grade polymer specifically designed for harsh outdoor and automotive environments.
- UV Immunity: Unlike ABS, ASA is highly resistant to ultraviolet radiation. It will not chalk, yellow, or become brittle when exposed to years of direct sunlight.
- Thermal Stability: ASA boasts a remarkably high glass transition temperature. It easily withstands the brutal internal cabin temperatures of a sun-baked car without warping or losing its mechanical integrity.
- Flexural Strength: The material retains a microscopic level of flexibility, meaning our reinforced retention tabs can bend and snap securely into the door panel without shattering.
4. Texture and Finish
A replacement part is useless if it looks out of place. We spent countless hours dialing in our manufacturing parameters to ensure the surface finish of our ASA cover features a subtle, matte texture that beautifully complements the OEM Mercedes interior aesthetic.
OEM vs. RCW: A Technical Comparison
To clearly illustrate why our engineered upgrade is the final solution for your R129, here is how our part stacks up against the factory original:
| Feature | Original Factory Part (1297273988) | Rigid Custom Works Upgrade |
|---|---|---|
| Material Base | ABS Plastic (Prone to chemical degradation) | High-Performance ASA Polymer |
| UV Resistance | Poor (Becomes highly brittle over time) | Excellent (UV Stabilized) |
| Thermal Stability | Moderate (Degrades in hot climates) | Superior (Withstands extreme cabin heat) |
| Clip Design | Sharp 90-degree angles (High stress concentration) | Fillet-reinforced base geometry |
| Longevity | Known to fail | Engineered as a permanent fix |
Installation: Doing it Right the First Time
One of the best things about the Rigid Custom Works memory seat switch cover is that it requires absolutely no modifications to your vehicle. It is a direct, plug-and-play replacement.
However, because you are working with a 30-year-old door panel, we recommend a gentle touch during installation:
- Remove Debris: Ensure that the broken plastic tabs from your old cover are not stuck inside the metal mounting slots of the switch module. Use a pair of needle-nose pliers or tweezers to clear the channels.
- Align Carefully: Do not force the part. Gently align the cutouts of our new cover over the seat-shaped switch stalks and the memory buttons.
- Press Evenly: Once aligned, apply even, gentle pressure across the face of the bezel until you feel the ASA retention clips firmly snap into the metal housing.
Within five minutes, you will have completely restored the visual integrity of your R129’s door card. No more exposed screws, no more rattling plastic, and no more worrying about the part breaking the next time you shut your door.
Restore Your R129 to Its Former Glory
You bought your Mercedes-Benz SL to enjoy the pinnacle of 90s luxury and performance, not to be annoyed by failing plastic trim. The interior of an R129 should be a sanctuary of leather, wood, and perfect ergonomics.
Stop wasting time and money hunting for fragile, overpriced used parts that are guaranteed to fail again. Upgrade to a modern, engineered solution that honors the original design of the car while drastically improving its durability.
Ready to fix your door panel permanently? Shop the Rigid Custom Works R129 Memory Seat Switch Cover (1297273988) Here.
Engineered for enthusiasts. Built to outlast the road.
